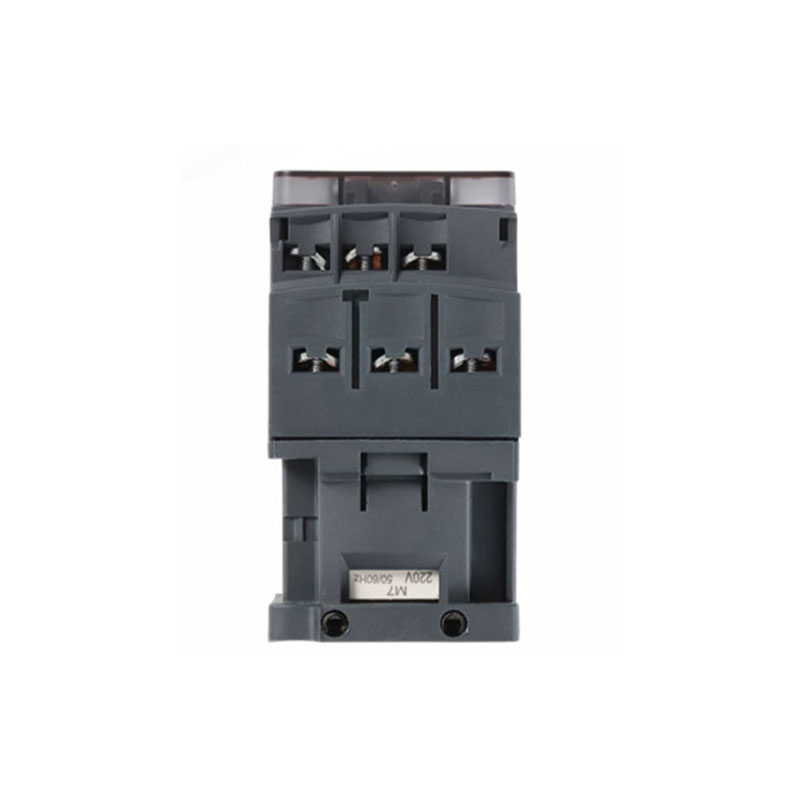

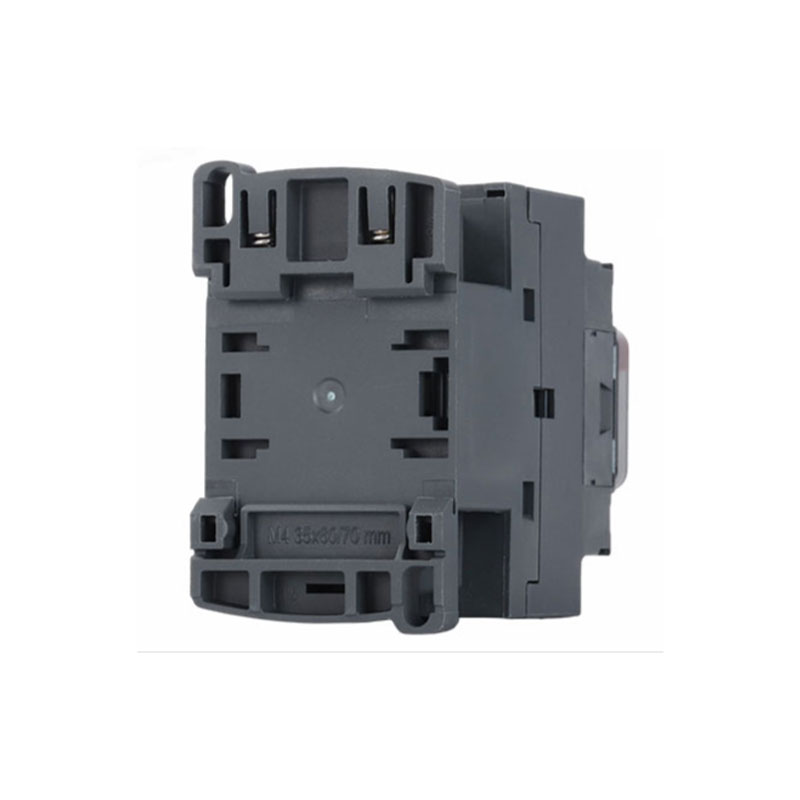

CL1-AC Contactor

Get a Quote

Technical Parameters

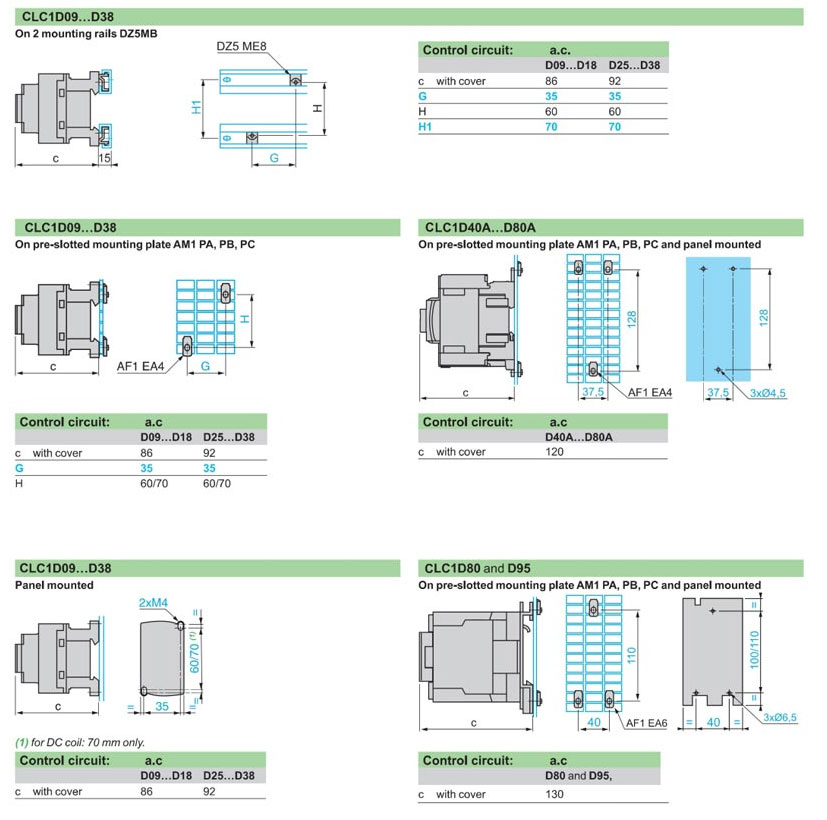

CLC1 Diagram		D09 Series	D12	D18	D25	D32	D38	D40A Series	D50A Series	D65A Series	Model D80	D95A Series
Rated operating current in AC-3 440V up to		9A	12 Abe	18 Abe	25 Abe	32 Abe	38 Abe	40 Abe	50 Abe	65 Abe	80 Abe	95 Abe
Control battery voltage		AC 24V, 110V, 220V, 380V, 415V
Standard rated power of AC-3 class 50-60 Hz three-phase motors (0≤ 60 ℃)	220V/230V	2.2	3	4	5.5	7.5	9	11	15	18.5	22	25
	380V/400V	4	5.5	7.5	11	15	18.5	18.5	22	30	37	45
	415V	4	5.5	9	11	15	18.5	22	25	37	45	45
	440V	4	5.5	9	11	15	18.5	22	3	37	45	45
	500V	5.5	7.5	10	15	18.5	18.5	22	30	37	55	55
	660V/690V	5.5	7.5	10	15	18.5	18.5	30	33	37	45	45
	1000V	-	-	-	-	-	-	-	-	-	45	45

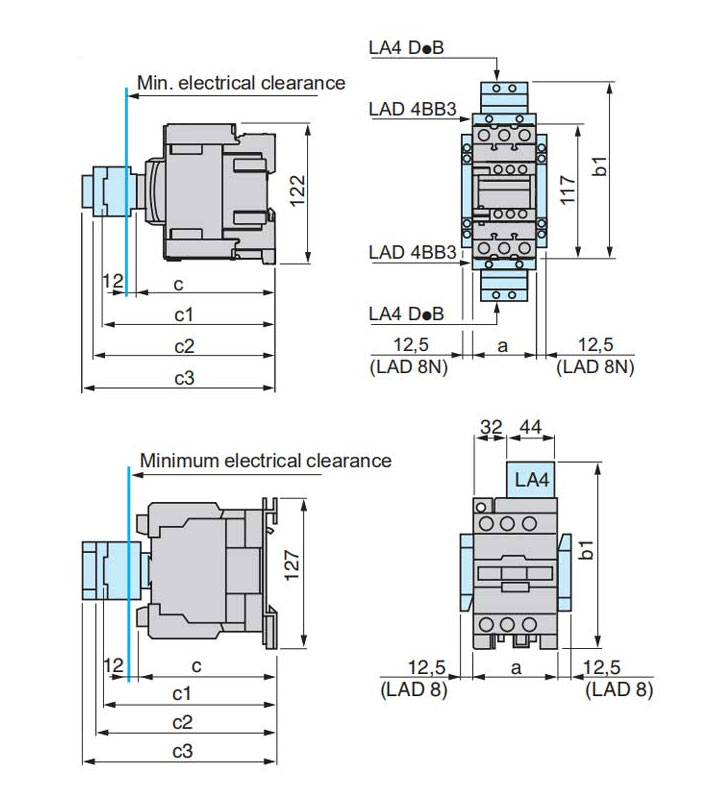

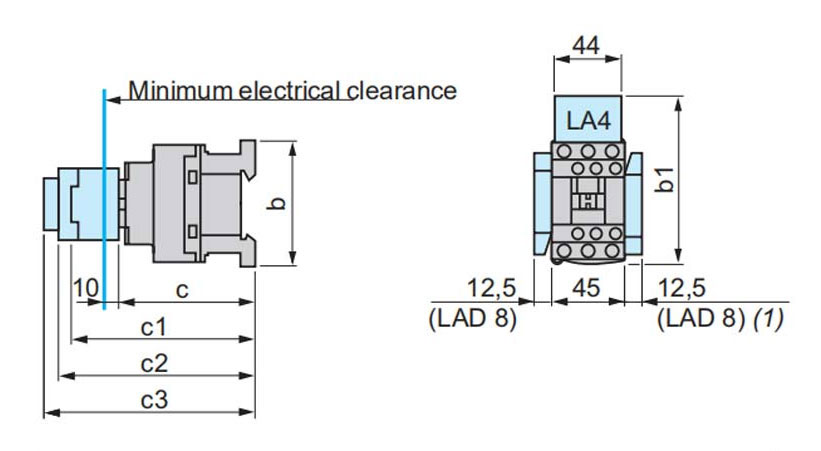

		D09...D18	D25...D38
b	without add-on blocks	77	85
b1	with LAD4BB	94	98
	with LA4D●2	110⁽¹⁾	114⁽¹⁾
	with LA4DF, DT	119⁽¹⁾	123⁽¹⁾
	with LA4DW, DL	126⁽¹⁾	130⁽¹⁾
c	without cover or add-on blocks	84	90
c	with cover, without add-on blocks	86	92
c1	with LADN or C (2 or 4 contacts)	117	123
c2	with LA6DK10,LAD6K10	129	135
c3	with LADT, R, S	137	143
c3	with LADT, R, S and sealing cover	141	147

		D40A...D80A	D80	D95
a		55	85	85
b1	with LA4D●2	-	135	135
	with LA4DB3 or LAD4BB3	136	135	-
	with LA4DF, DT	157	142	142
	with LA4DM, DW, DL	166	150	150
c	without cover or add-on blocks	118	125	125
c	with cover, without add-on blocks	120	130	130
c1	with LADN (1 contact)	-	150	150
c1	with LADN or C (2 or 4 contacts)	150	158	158
c2	with LAD6K10 Or LA6DK	163	170	170
c3	with LADT, R, S	171	178	178
c3	with LADT, R, S and sealing cover	175	182	182
