Mini circuit breaker lockout

Dec 13,2023

Editer: Sherry

Miniature Circuit Breaker, referred to as MCB (mini Circuit Breaker/ Miniature Circuit Breaker), is one of the most widely used terminal protection appliances in building electrical terminal distribution devices. It is used for single-phase and three-phase short circuit, overload and overvoltage protection below 125A, including four kinds of single-pole 1P, two-pole 2P, three-pole 3P and four-pole 4P.

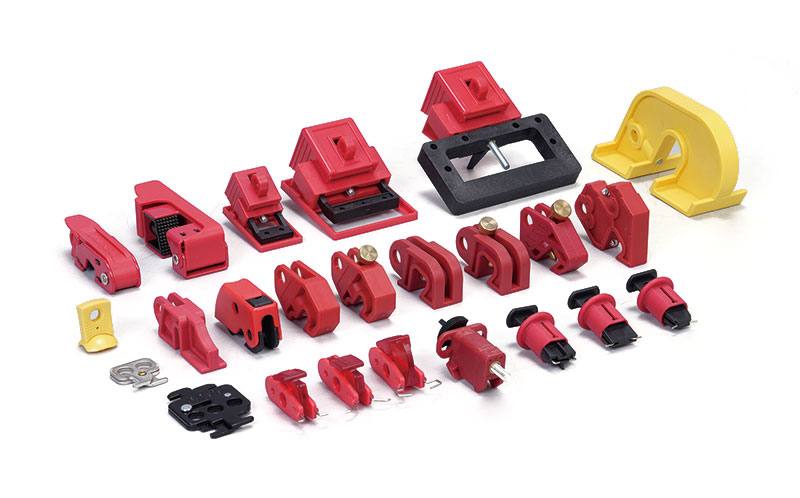

The circuit breaker is one of the commonly used electrical devices in our daily life. It can control the energy output and disconnect through the handle switch. Miniature circuit breakers are also a source of dangerous energy. As we all know, when we implement the lockout tagout program, we must isolate the source of danger. Wenzhou Ulterior Electrical Technology Co., Ltd. production of circuit breaker lockout (AZ-MCBL21/22/23/24) can effectively control the mini circuit breaker.

AZ-MCBL21/22/23/24 circuit breaker lockout is suitable for different brands of circuit breakers, such as: Schneider, Drissie, Bull,ABB, Chint, Simon, Hongyan, Siemens, Panasonic, etc., whether it is 1P,2P,3P,4P, can be used.

AZ-MCBL21 pin out standard(POS) breaker lockout is suitable for 1 to 4p miniature circuit breakers with a pin hole at the handle.

AZ-MCBL22 pin in standard(PIN) breaker lockout is suitable for 1p miniature circuit breakers with a pin hole at the handle.

AZ-MCBL23 pin out wide (POW) breaker lockout is suitable for 1 to 4p miniature circuit breakers with a pin hole at the handle.

AZ-MCBL24 Tie Bar breaker lockout is suitable for 1 to 4p miniature circuit breakers. No pinholes are required at the handle.

The installation is extremely simple and can be easily locked without the help of tools. The lockout easily installs with the aid of a Push Button, The tie-bar style lockout has a convenient thumb wheel for quick application. Recommended to use in combination with a padlock with a minimum shackle diameter of 6 mm for added safety.
